Back Pressure Regulating & Pressure Relief Valves

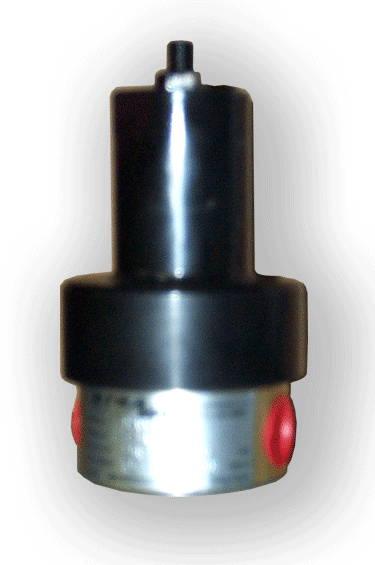

Back Pressure Regulating Valves

Phillips RVI & BPS series back pressure regulating valves are self-contained units designed to handle the most critical upstream pressure requirements typically found in fuel oil boiler loop applications. Our industrial duty back pressure regulating valve automatically maintains the desired set pressure in the loop system by relieving excess pressure into the lower pressure return side of the loop. With a fast response and available in four separate spring ranges covering from 0 to 150 PSI, these adjustable valves are ideally suited for continuous operation.

.

Features Include:

  • Easy maintenance
  • Fast response time
  • Brass (RVI series) or Stainless (BPS series) body, viton piston seals
  • Cadmium plated spring
  • 300 PSIG maximum pressure
  • 200° Fahrenheit maximum temperature
  • Adjustable pressure ranges

Size

Part
Number

Pressure
Range

Size

Part
Number

Pressure
Range

1/2"

RVI2005T-BR-0/50

0 - 50  PSI

1 1/2"

BPS0515T-SS-0/50

0 - 50  PSI
NPT

RVI2005T-BR-50/150

50 - 150  PSI

 NPT

BPS0515T-SS-50/150

50 - 150  PSI








3/4"

RVI2007T-BR-0/50

0 - 50 PSI

 1 1/2" BPS0515A-SS-0/50

0 - 50 PSI
NPT RVI2007T-BR-50/150 50 - 150  PSI Flanged BPS0515A-SS-50/150 50 - 150  PSI











1"

RVI2010T-BR-0/50

0 - 50 PSI

 2"

BPS0520T-SS-0/50

0 - 50 PSI
NPT

RVI2010T-BR-50/150

50 - 150 PSI

 NPT

BPS0520T-SS-50/150

50 - 150 PSI








1 1/4" BPS0511T-SS-0/50 0 - 50 PSI 2" BPS0520A-SS-0/50 0 - 50 PSI

NPT

BPS0511T-SS-50/150

50 - 150 PSI

Flanged

BPS0520A-SS-50/150

50 - 150 PSI











1 1/4"

BPS0512A-SS-0/50

0 - 50 PSI






Flanged

BPS0512A-SS-501/50

50 - 150 PSI



Pressure Relief Valves

Phillips Pump relief valves (series WR) for fuel oil service are capable of controlling outlet pressures up to 300 PSI.  Bodies are cast bronze, 1/2" through 2" NPT pipe thread, angle design with either bronze or optional Buna N seats for leak free service.  Typical service applications include system pressure control, balancing, and pump bypass relief.

  • Capacities: to 16 GPM
  • Maximum inlet pressure: 300 PSIG
  • Pressure range: 1 to 300 PSIG with four adjustable spring ranges
  • Sizes: 1/2" to 2"
  • Material: cast bronze body with stainless steel ball and bronze seat on 1/2" to 1 1/2" NPT; bronze plug and seat on the larger sizes

Size
(NPT)

Part
Number

Pressure
Range

Size
(NPT)

Part
Number

Pressure
Range

1/2"

WR-12-4

1 - 12 PSI

1 1/4"

WR-15-4

1 - 12 PSI


WR-12-3

5 - 35 PSI



WR-15-3

5 - 35 PSI


WR-12-2

25 - 100 PSI



WR-15-2

25 - 100 PSI


WR-12-1

75 - 300 PSI



WR-15-1

75 - 300 PSI


3/4"

WR-13-4

1 - 12 PSI

1 1/2"

WR-16-4

1 - 12 PSI


WR-13-3

5 - 35 PSI



WR-16-3

5 - 35 PSI


WR-13-2

25 - 100 PSI



WR-16-2

25 - 100 PSI


WR-13-1

75 - 300 PSI



WR-16-1

75 - 300 PSI


1"

WR-14-4

1 - 12 PSI

2"

WR-17-4

1 - 12 PSI


WR-14-3

5 - 35 PSI



WR-17-3

5 - 35 PSI


WR-14-2

25 - 100 PSI



WR-17-2

25 - 100 PSI


WR-14-1

75 - 300 PSI



WR-17-1

75 - 300 PSI
