Self-Priming Centrifugal Pumps For Transport
Off-Loading Or Tank-To-Tank Transfer
Of Fuel Oil, Diesel Fuel And Lube Oils

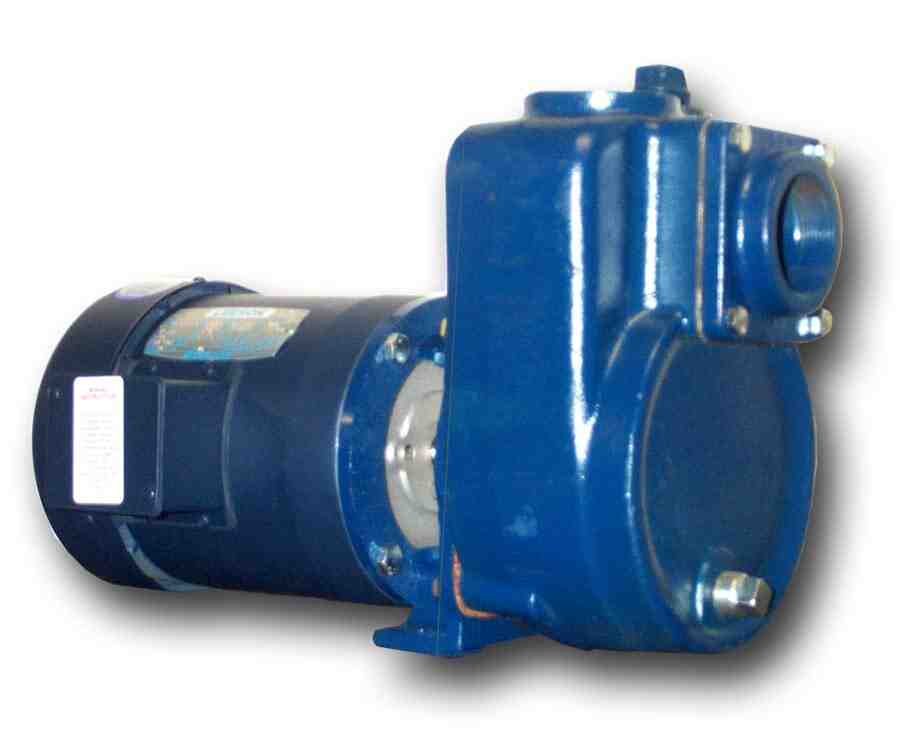

Our cast iron self priming centrifugal pumps are the perfect answer for off-loading transports, transferring fuels to above ground storage tanks, from tank to tank, or from tank to loading rack or dispensers.

These pumps are direct coupled to a standard NEMA frame totally enclosed fan cooled or UL Listed Class-I Group D explosion proof electric motors. This direct coupled design allows the motor to be removed for service without disturbing the piping.

All fasteners are stainless steel to reduce corrosion, and dual volute impellers are balanced and trimmed to ensure non-loading conditions.  The standard viton mechanical seal with stainless steel spring is self-adjusting and corrosion-resistant to any type of fuel.

Features Include:

  • Heavy duty cast iron housing
  • Direct-coupled design allows the motor to be removed without disturbing the piping connections.
  • Viton/ceramic self-adjusting mechanical shaft seal for fluid temperatures up to 212°F.
  • Viton O-ring and flapper/check valve standard
  • Sealed motor bearings on all motors carry radial and thrust loads of the pump.
  • Maximum operating pressure is 125 PSI.
  • Maximum operating temperature 212°F

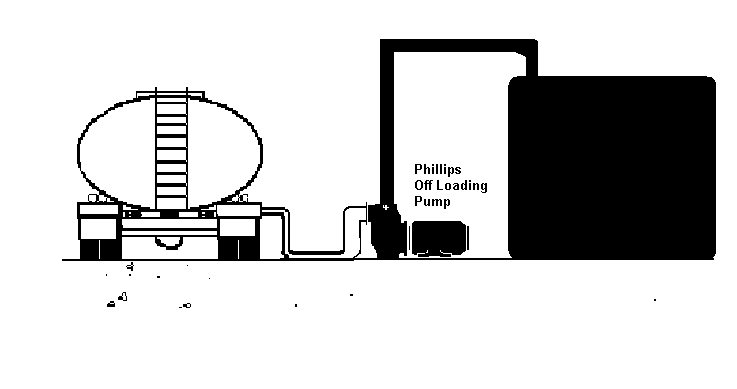

  • Can be used as a stand-alone transfer system for transport off-loading or for tank-to-tank transfer.
  • Interfaces with our FPC-10 series pump controller for tank overfill protection and multi-tank flow control applications.
  • Every pump is fully inspected and 100% factory tested.
  • One year warranty.

Flow (GPM) vs. Feet of Head

Pump Series

Suction / Discharge NPT

Motor
HP

10'

20'

30'

40'

50'

60'

70'

80'

90'

100'

1

1.5" x 1.5"

3/4

60

50

45

35

25

15

-

-

-

-



1

80

70

65

55

45

30

10

-

-

-



1 1/2

100

90

85

75

65

55

40

25

-

-

    2 120 110 100 90 80 70 60 40 10 -


2

2" x 2"

1 1/2

110

100 90

75

60

50

30

-

-

-



2

130

115

105

90

75

60

40

20

-

-



3

150

135

125

110

100

80

70

50

25

-



3

3" x 3"

3

250

225

200

170

125

75

-

-

-

-



5

300

275

260

230

215

180

140

100

-

-



7 1/2

375

355

340

320

290

265

230

200

150

100

Note: Click on pump series number to see the actual pump performance curve.
