Float, Leak
& Level Probes
|
|
CONTINUOUS READING TANK
LEVEL PROBES

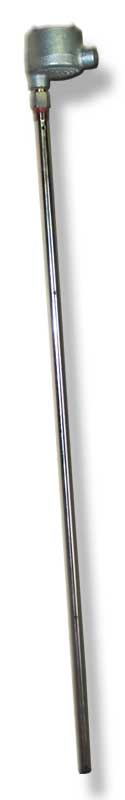

Phillips Pump continuous level capacitance probe is an economical and
compact level sensing device that provides a continuous electronic output
to measure levels in tanks without moving parts or internal switches.
Vertically mounted our probe are all stainless steel construction with
a teflon encapsulated inner core. An 3/4" NPT tank mounting fitting
is standard, with probe lengths up to 120" and complete with a NEMA 7
explosion proof junction box.
Features & Specifications:
- Continuous measuring without moving parts
- Probe lengths available up to 120"
- 316L stainless steel construction with teflon encased inner core
- 3/4" NPT tank top fitting
- Ambient Temperature: -40 to 160° F
- Maximum Pressure: 400 psi
- 4-20 mA output
- Power consumption 1.3 VA
- Linearity: +/- 0.5% of actual
- Response Time: 0.5 second
Phillips Part Number: CP-420-XX
Note: Specify probe length after part number. Example CP-420-60 is our
60" long continuous level probe
with a 4-20 mA output
|  |
|

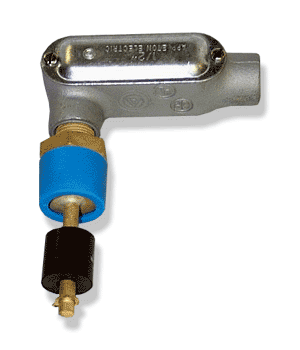

SINGLE LEVEL FLOAT
SENSORS
Phillips Pump single level float switch combines low cost and reliability
with fast, simple installation. Hermetically sealed reed switches
are actuated by magnets permanently bonded inside the
float and can be easily adapted to open or close a circuit on rising
or falling levels. Level switches are
shipped with normally open (closes as the
float rises) or normally closed (opens as the float rises) switch contacts.
Vertical mount oriented within 30° of vertical. Switch
ratings are suitable for any of our Phillips Pump controllers, monitors
or alarm consoles.
Specifications:
Mounting - 1" NPT Tank
Top Plug
Junction Box - Explosion proof per class I, group D
Stem - Brass, 5/16" Dia
Float - Buna with Copper Grips Rings, .55
specific gravity, 1" dia.
Contact Style - SPST, 20 watt
| Part
Number |
Actuation
Point |
|
Part
Number |
Actuation
Point |
| FS1-02 |
2" |
|
FS1-26 |
26" |
| FS1-04 |
4" |
|
FS1-28 |
28" |
| FS1-06 |
6" |
|
FS1-30 |
30" |
| FS1-08 |
8" |
|
FS1-32 |
32" |
| FS1-10 |
10" |
|
FS1-34 |
34" |
| FS1-12 |
12" |
|
FS1-36 |
36" |
| FS1-14 |
14" |
|
FS1-38 |
38" |
| FS1-16 |
16" |
|
FS1-40 |
40" |
| FS1-18 |
18" |
|
FS1-42 |
42" |
| FS1-20 |
20" |
|
FS1-44 |
44" |
| FS1-22 |
22" |
|
FS1-46 |
46" |
| FS1-24 |
24" |
|
FS1-48 |
48" |
Note: Specify normally open (A) or normally
closed (B) switch type after part number. Example FS1-24A is our 24"
long float switch with a normally open float which will close on level
rise. FS1-24B is our 24" long float switch with a normally closed
float which will open on level rise.
|  |
|

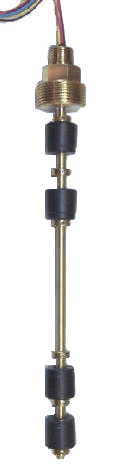

MULTI-LEVEL FLOAT
SENSORS
With up to 5 levels, Phillips Pump multi-level float
switches combine low cost and reliability with fast, simple installation.
Hermetically sealed reed switches are actuated by magnets
permanently bonded inside each float and can be easily adapted
to open or close a circuit on rising or falling levels. Beryllium copper
stop rings for each float provides actuate, vibration free actuation
location and easy field repair.
Level switches are shipped with normally
open (closes as the float rises) or normally
closed (opens as the float rises) switch contacts. Vertical mount oriented
within 30° of vertical. Switch ratings are
suitable for any of our Phillips Pump controllers, monitors
or alarm consoles.
Specifications:
- Mounting - NPT tank top fitting explosion proof junction box
- Stem - Brass, 5/16" or 1/2" diameter
- Float - Buna N with with beryllium copper grips rings, .55 S.G.
- Contact Style - SPST, 20 watt
|  |
|
HANGING TYPE SUMP
OR TANK OIL LEAK & WATER
DETECTION SWITCHES
Weighted, compact-sized float with slosh
shield, Phillips Pump’s HFS series provides liquid level detection for a
wide variety of applications. Designed to be suspended in stand pipes,
sumps or from tank top for leak detection duty and/or for leak and water
detection. Switch is supplied with 15 feet of PVC jacketed UL 2484
waterproof cable
Our HFS-1 series switch for oil detection
consists of a PVC slosh shield with Buna-N float.
Our HFS-2 series switch for oil and water
detection of a PVC slosh shield, Buna-N float for oil detection and a 316
SS conductivity probe for water
detection.
Part Number |
Detection
Medium |
HFS-1 |
Oil |
HFS-2 |
Oil
& Water |
|  |
|

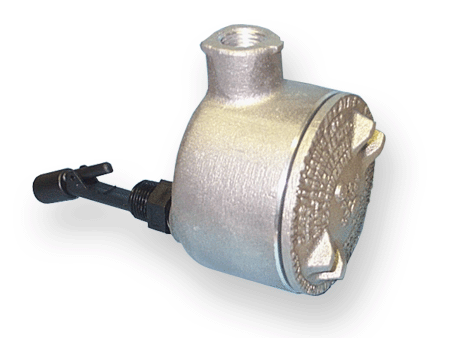

SIDE MOUNT BASIN &
PIPING LEAK
SENSORS
This side-wall mount sealed switch detects diesel or other fuel
oil leakage into daytank rupture basin or outer double wall
containment piping. They are compact, easy to install into
1/2" NPT threaded opening, the encased magnetic switch
is float operated and sealed against vapors. Comes complete
with explosion proof wiring enclosure. (Note: for installation
in side mounting applications only)
Specifications:
- Normally open, closes on rise
- 30 VA nominal switch rating
- Nylon float & stem for oils, fuels & gasoline
- 100 PSIG Maximum Pressure
- Operating Temperature: -40 to +150 Degrees F
Phillips Part Number: SMLS-1
|
|
|
ENCLOSED BASIN / TANK ROOM
FLOAT TYPE LEAK DETECTION
SWITCHES
Enclosed single level switches with the addition of a liquid tight
cord grip, mounting bracket, and slosh shield. The slosh shield doubles
as protection from particulate and debris as well as from accidental
tripping. Unlike many other sensors, these are liquid tight inside and
out due to the cable cord grip.
Switch consists of all stainless steel housings with polycarbonate
shields, and Buna-N floats.
Part Number |
Float
Configuration |
| ELS-80500-NC |
Normally Closed |
| ELS-80500-NO |
Normally Open |
|
|
|
| |
|
