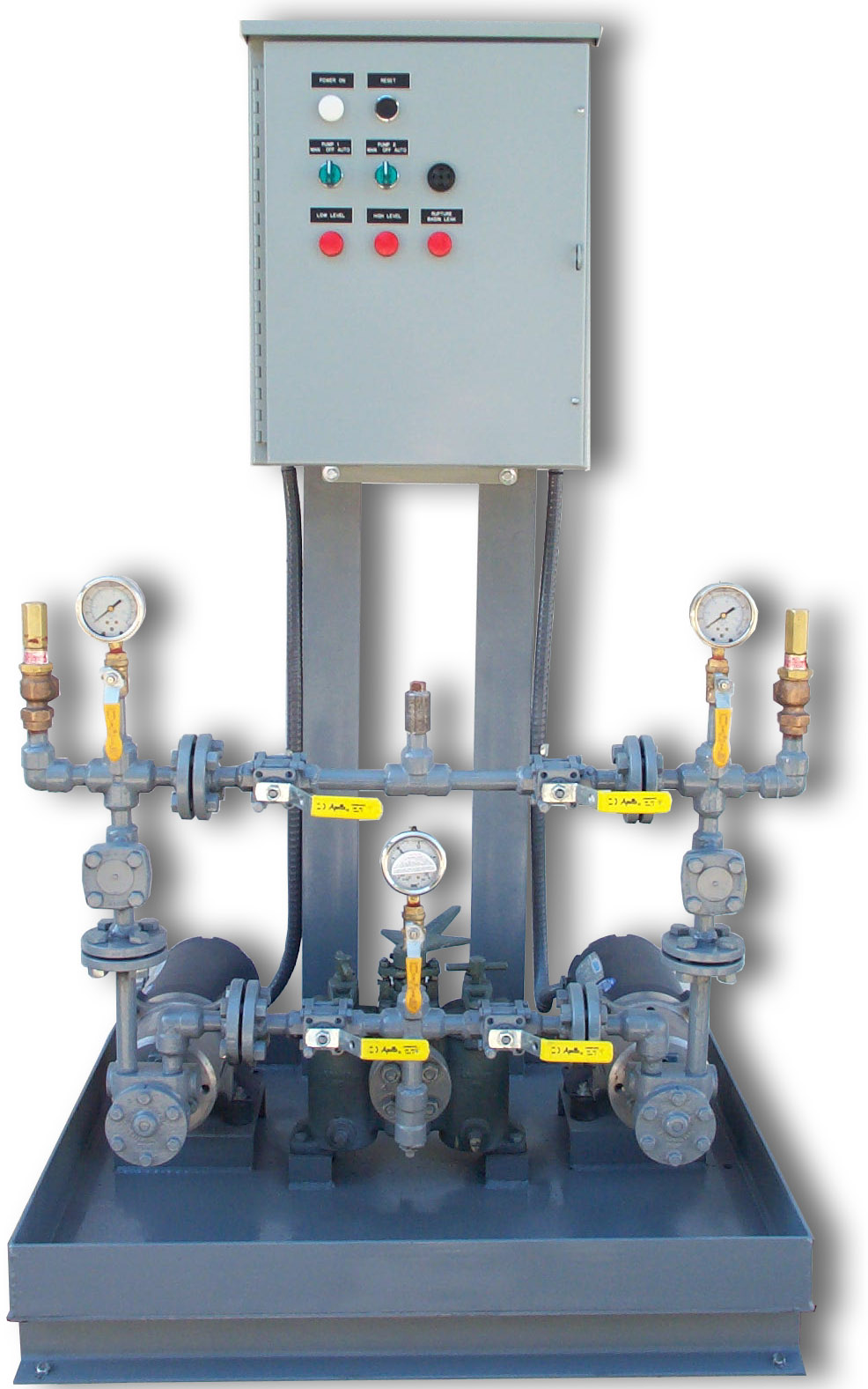

Units are factory-assembled, suitable for pad mounting, on a heavy duty structural steel containment basin with all piping welded and flanged.

At the heart of each system is a rugged, cast iron, positive displacement pump designed for long life and continuous duty. Each pump is selected for system specific requirements, pressure and flow rates, and is mounted directly to a UL listed single or three phase, totally enclosed fan cooled motor providing direct alignment of the pump and motor.

Our involuted "gear within a gear" design reduces gear wear while providing a pump with minimal noise and excellent suction characteristics. This design approach eliminates the need for any re-alignment of the motor pump combination after installation.

Each Phillips Pump System Includes:

• Piping - Schedule 40, ASTM Grade A-53 black steel with A-105 forged steel socket welded fittings and A-105 150# forged steel flanges.
• Pump set containment basin, 3" high overflow lip with 1/2" NPT drain.
• Duplex strainer on system inlet for continuous flow during basket cleaning
• Liquid filled compound vacuum pressure gauge with shut off valve, 2 ½" diameter, 30 " Hg – 0 – 30 PSI, on suction side of pump set is standard. Additional gauges, other ranges or larger dials are available.
• Positive displacement gear pumps, 0 – 250 PSI pressure range, direct coupled to UL listed totally enclosed fan cooled industrial motors with an class 800 swing type check valve on each pump discharge
• Common system suction and common discharge ports
• External adjustable relief valves on each pump discharge for system protection
• Liquid filled pressure gauges with shut off valves, 2 ½" diameter, on each pump discharge. Additional gauges, different settings or larger dials are available.
• Shut-off valves with lockable handles, flanged & placed so pump may be removed for servicing without disturbing piping
• UL 508 listed, NEMA 3R control panel, mounted on front of system to meet national electrical codes, with factory programmed pump controller, automatic pump alternation, manual-off-auto pump mode selector switches, power available indication, integral pump motor starters with adjustable overload protection
• Systems available in single (115/208-230 volt) or three phase (208-230/460 volt). All motor RPM are 1725, consult factory for other types of fuels or higher pressure ratings.
• Pump set and system control options are available to meet the specific requirements for each application. Standard controls can be set for either boiler loops or generator day tank fill.

ns

DP SERIES DUPLEX PUMP SETS

Flow Rate & Horsepower - 1725 Motor RPM

DP-1

3/4" NPT

1/2" NPT*

1.8

1/3

1.4

1/3

1.2

1/3

1.1

1/2

.9

3/4

DP-3

3/4" NPT

1/2" NPT*

3.4

1/3

3.0

1/3

2.8

1/2

2.4

3/4

2.1

3/4

DP-5

3/4" NPT

1/2" NPT*

4.6

1/3

4.2

1/3

3.6

1/2

3.2

3/4

2.8

1

DP-6

3/4" NPT

1/2" NPT*

6.4

1/3

6.2

1/2

5.7

3/4

5.3

1

5.0

1 1/2

DP-8

3/4" NPT

1/2" NPT*

8.1

1/2

7.5

3/4

7.0

1

6.4

1 1/2

5.5

2

DP-10

1" NPT

3/4" NPT

12.5

3/4

11.0

1

10.0

1 1/2

9.5

2

9.0

3

DP-15

1 1/2" NPT

1" NPT

16.0

3/4

14.5

1

13.7

1 1/2

13.0

2

12.3

3

DP-20

1 1/2" NPT

1” NPT

19.6

1

18.2

1 1/2

17.6

2

16.4

3

15.8

3

DP-24

1 1/2" NPT

1” NPT

21.5

1

19.8

1 1/2

18.7

2

18.0

3

17.0

5

DP-30

2" NPT

1” NPT

30.5

1 1/2

29.5

2

28.5

3

27.5

5

27.0

5

DP-40

2" NPT

1” NPT

40.5

2

38.8

3

37.8

5

37.0

5

36.3

7 1/2

DP-44

3" FLG

2” FLG

47.0

3

44.5

3

42.5

5

41.0

7 1/2

39.0

10

DP-54

3" FLG

2” FLG

54.3

3

51.0

3

49.0

5

48.0

7 1/2

47.0

10

DP-60

3" FLG

2” FLG

61.0

3

59.0

5

58.0

7 1/2

57.0

10

55.5

15

DP-70

4" FLG

2” FLG

72.0

3

69.0

5

66.0

7 1/2

64.0

10

62.0

15

DP-80

4" FLG

2” FLG

82.0

5

79.0

7 1/2

77.0

10

74.0

15

71.0

15

1092

Fusible link valve, lever type (includes wire coil & fuse link)

1093

Fusible link valve, arm type

1100

Additional pressure gauge on pump set discharge

1101

Additional compound vacuum/pressure gauge on suction side of strainer

1120

4" dial vacuum and pressure gauges in lieu of standard 2 1/2" dial gauges

1105

Back Pressure Regulating Valve (Note: pressure range must be specified)

1191

Containment piping leak sensor with piping leak detect alarm indication

1264

Differential pressure gauge across strainer with tri-color scale (green for clean, yellow for clean, red for dirty) with control panel clean strainer indicating alarm

1270

Pump set basin leak detection sensor, float type with protective shroud with control panel pump set leak detected indicating alarm

1285

Pump set discharge flow sensor with pump failure alarm indication

1286

Pump set discharge pressure sensor with pump failure alarm indication (to be used in lieu of option #1285)

1490

Explosion proof motor, 208-230/460, Three Phase

1494

Explosion proof motor, 115/208-230 Single Phase
