Fusible Link Valves
Dial Type Small Fusible Valves

Designed not to restrict oil supply flow, our 3/4" NPT and 1" NPT small fusible valve meets the code requirements for automatic closing of oil supply lines in case of fire. Each valve can be manually operated and includes a replaceable 165F link which melts allowing the valve to close.



Size (NPT)

Part Number

3/4" NPT

HF-91203000

1" NPT

HF-91204000

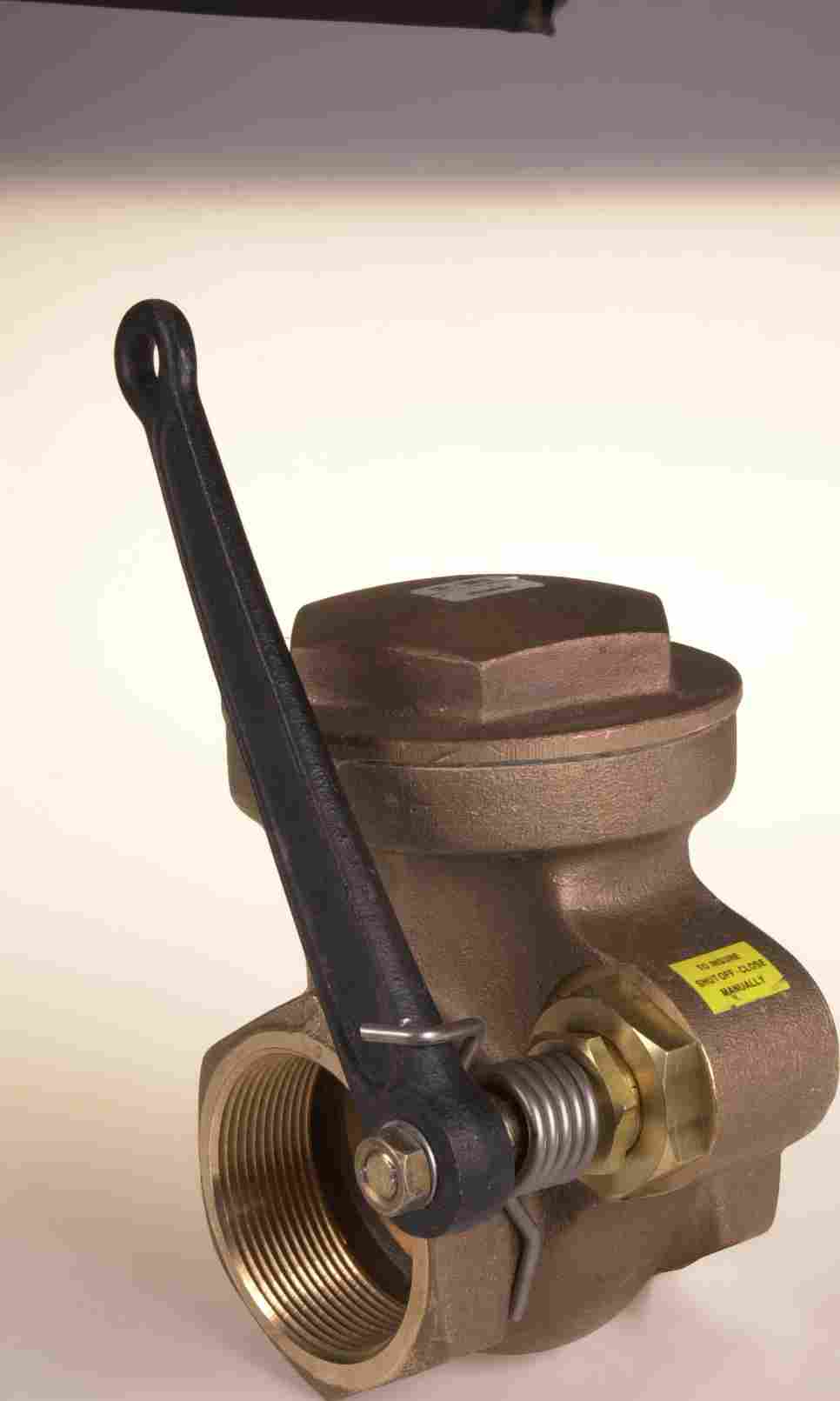

Large Lever Type Fusible Valves

Phillips Pump's line of fusible valves has been designed to minimize fire hazards in those systems where diesel fuel or fuel oil is used.  These valves automatically close when ambient temperatures reach 165F, and shut off the flow of fuel.

Features:

  • Brass body, cap and disc with malleable iron handle
  • Quick opening
  • Cadmium plated spring
  • 200 PSI WOG rated
  • 165F fuse link with wire coil included with each valve

Size (NPT)

Part Number

1 1/4" NPT

HF-91023812K

1 1/2" NPT

HF-91023814K

2" NPT

HF-91023820K

3" NPT

HF-91023830K

Spare Wire Coil & 165F fuse link

HF-91023800

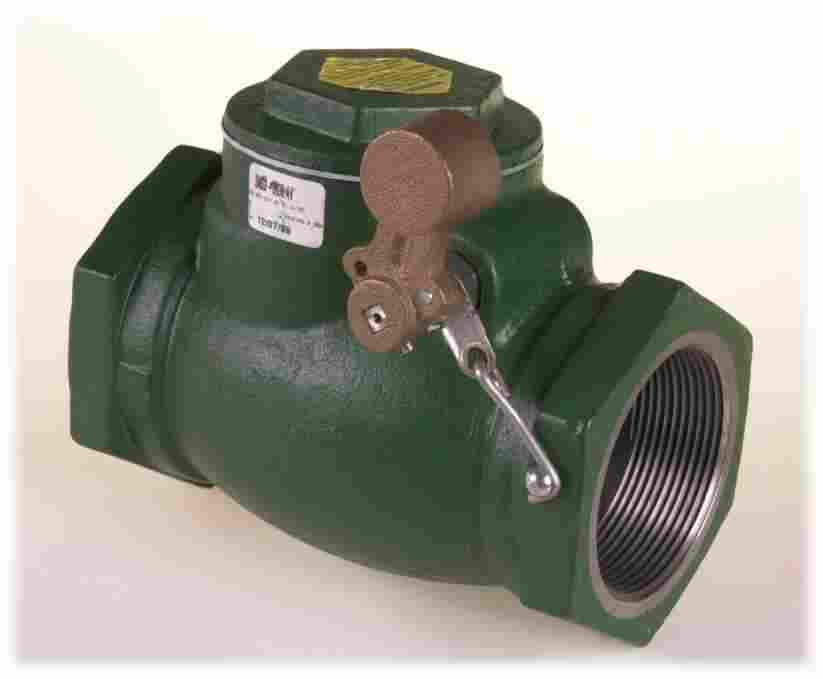

Large Self-Contained Fusible Valves

Phillips Pump's line of fusible valves has been designed to minimize fire hazards in those systems where diesel fuel or fuel oil is used.  These valves automatically close when ambient temperatures reach 165F, and shut off the flow of fuel.

Features:

  • Ductile iron body, cap and arm
  • Stainless steel spring
  • Teflon packing
  • Cadmium plated spring
  • 200 PSI WOG rated
  • 165F fuse link

Size (NPT)

Part Number

1 1/2" NPT

HF-91034614

2" NPT

HF-91034620

3" NPT

HF-91034630

2" Flanged

HF-91034620F

3" Flanged

HF-91034630F

Spare Link

HF-91023801
