IN-WALL FLUSH MOUNT FUEL TRANSFER FILL BOX

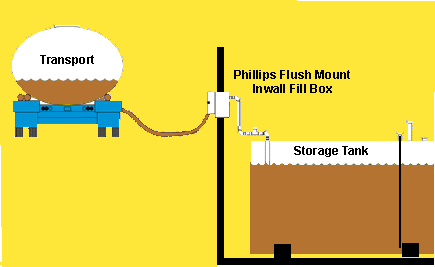

Phillips Pump offers fuel oil fill boxes to contain oil spills specifically for those instances where an inside tank is filled from the outside.

When used in conjunction with a flush mounted through the wall hook-up, this solution protects fuel supply lines from damage, vandalism or unauthorized access.

Since our fill boxes can be easily accessed, they allow for tank refilling without infringing upon property lines, or where there is limited filling space.

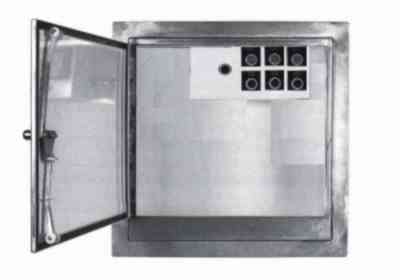

Our FCPM and FCSPM series in-wall, flush mount fill boxes are integrated engineered packaged systems with controls for filling operations.   With a high level indicator and monitoring built into the box, controls include leak detection circuitry that prevents the filling of leaking tanks, operator warnings at the 90% tank full level and lock out of all filling operations when the tank is full.  Visual and audible alarms and indicator lights are also provided.

Should a spill occur, the five gallon containment sump provides protection and a 1/2" NPT drain port allows easy removal of any escaped oil.

Multi-tank applications are also possible.  Please contact us to discuss your specific design.  As with all Phillips Pump fuel transfer products, our in-wall fill boxes are fully compatible with, and can communicate with, our pump sets and day tanks, to bring you a single design source for all your fuel transfer equipment needs.

Each Phillips Pump In-Wall System Includes:

  • NEMA 4 rated enclosure
  • 5 gallon containment sump with 1/2" NPT drain port
  • Fully gasketed door with chrome plated locking door handle
  • Available in 14 gauge carbon steel with durable rust-resistant outer finish or 304 stainless steel
  • Dry break disconnect and dust cover
  • Net Weight: 135 lbs
  • Designed to meet the specific requirements of each application, special dimensions and a wide range of system options are available
  • Our carbon steel (FPM series) and stainless steel (FSPM series) are stand alone fill boxes
  • Our FCPM series and FCSPM series include an overfill prevention controller with:
    • Tank full / tank high level, and leak detected visual alarms
    • Audible alarm buzzer
    • Power on indicator light
    • System open/close and system reset push-buttons
    • Interface with existing third party tank gauging systems or bi-level float switch for tank full and tank high level warnings are available
    • Optional solenoids are available for installation in the fuel supply lines to lock out filling operations at tank full and tank high alarm levels
    • 115 VAC, 60 Hertz required, other voltages are available upon request
  • Our FCPM-DR series and our FCSPM-DR series include a digital tank level readout with the alarms listed above
  • The DR series interfaces with optional level probes listed below or with existing third party tank gauging systems having a 4 - 20 mA output (note: 115 VAC required, other voltages are available)

Model No.

Application

Material

Product Code

FPM

Fill Box only

Carbon Steel

1106

FSPM

Fill Box only

304 SS

1271

FCPM

Carbon steel fill box with overfill controls

Carbon Steel

3482

FCSPM

Stainless steel fill box overfill controls

304 SS

3647

FCPM-DR

Carbon steel fill box with overfill controls and tank level LCD display

Carbon Steel

3962

FCSPM-DR

Stainless steel fill box overfill controls and tank level LCD display

Stainless Steel

4130

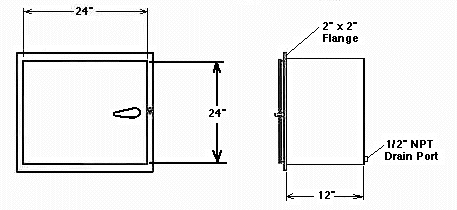

Basic Dimensions



Our Most Popular Options

Option

Description

Product Code

1030

a

Dry type disconnect, aluminum body, viton seals with dust cover, 1 1/2"  (note: shipped loose, location determined by installer)

197



b

Dry type disconnect, aluminum body, viton seals with dust cover, 2"  (note: shipped loose, location determined by installer)

231

1080

c

Dry type disconnect, aluminum body, viton seals with dust cover, 2"  (note: shipped loose, location determined by customer)

445



f

Solenoid valve, bronze, 120 VAC, normally closed, 2" NPT  (note: shipped loose for installation in fuel supply line)

895



g

Solenoid valve, bronze, 120 VAC, normally closed, 3" NPT  (note: shipped loose for installation in fuel supply line)

895

1191

a

Float type piping leak detection sensor with 1/2" NPT fitting

174



b

Encased float type tank interstitial leak detection sensor, 2" NPT tank top mounting

382

1250

a

Auxiliary high level float switch for tank high level alarm  (note: 1" NPT tank top fitting required)

207



b

Bi-level float switch for tank full and tank high level alarms  (note: 2" NPT tank top fitting required)

343

1252



Pressure type level gauge, 4-20 mA output (to be used with type DR models) with junction box  (note: 2" NPT tank top fitting required)

1759
